MEVA AVIONICS. started its operations in 2023 at the ODTU Teknokent Campus, focusing on electronic hardware design and embedded software development. In the field of electronic hardware design and embedded software development, MEVA AVIONICS offers superior services to its customers with the latest innovations in the industry and the highest quality standards. Under the leadership of skilled and experienced management, MEVA AVIONICS has quickly designes and produces high-speed, high-capacity artificial intelligence computers, data recording computers, mission computers, data concentrator units, and 10 and 24-port Ethernet switches with its young and dynamic team, suitable for military conditions.

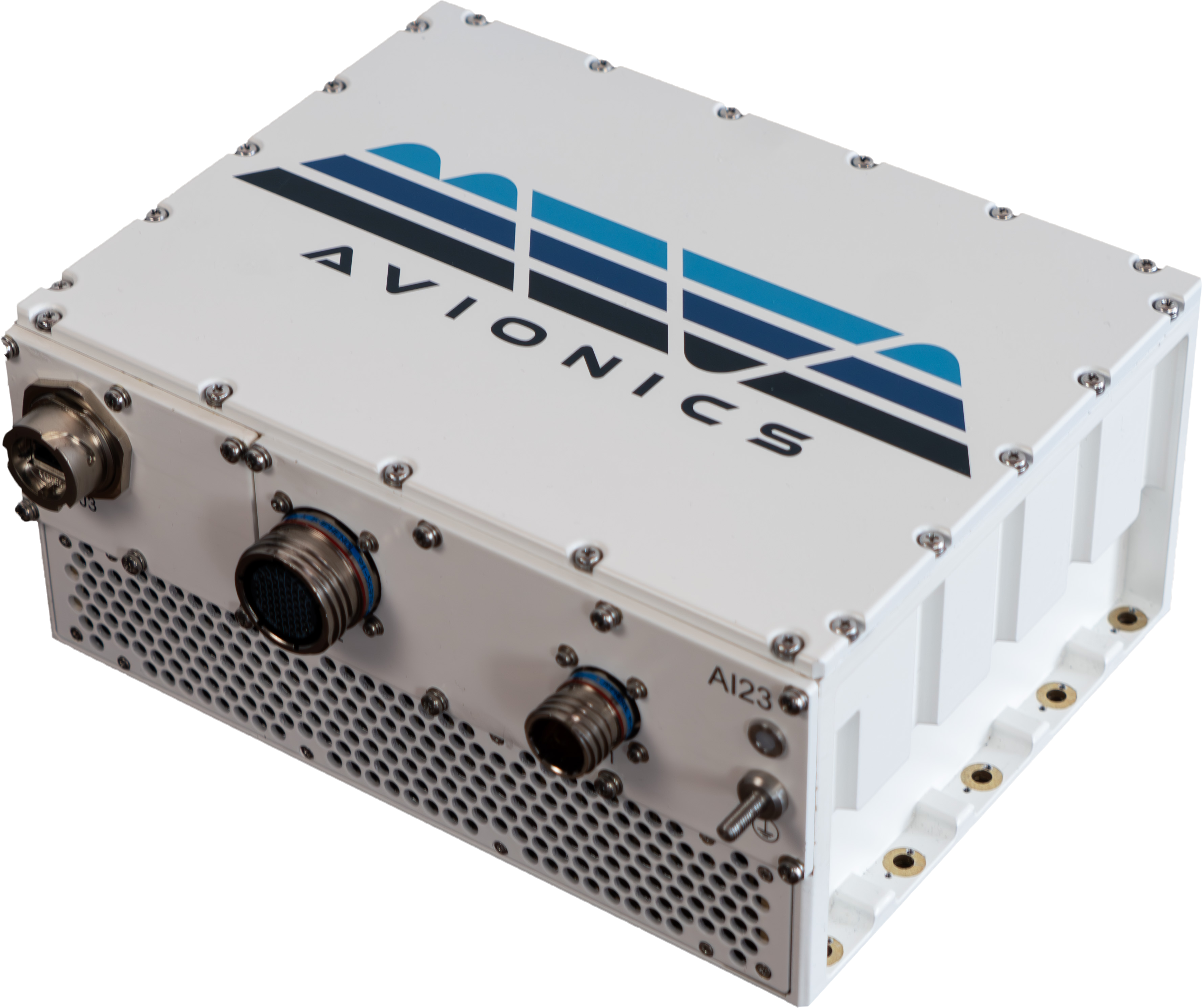

• Intel Xeon D-1700 Processor, 10C/20T 2.0 GHz 15MB Cache, Edge AI (Intel® AVX-512 & VNNI), AI Capabilities with Intel® DL boost • Embedded NVIDIA RTX™ A4500, NVIDIA Ampere Architecture, 16GB GDDR6 memory • Up to 4 TB Sata Disc • 2 x TSN capable 2.5GbE • 3 x M.2 Slot (Video Capture, Storage, Interface ….) • 10GBase-T Ethernet • 2 x CAN 2.0A/B, 1 x 422/485, 2 x USB 3.0, 1x USB2.0, Optional 4 video input (BNC) • Microsoft® Windows 10 | Linux • Weight < 5Kg • Dimensions (W x D x H) 235 x 180 x 105 mm • Operating Temperature -40 °C to +55 °C • Storage Temperature -55 °C to +85 °C • +28 VDC nominal input • Max Power 240W • Fan Cooling • MIL-STD-461, MIL-STD-810 and MIL-STD-704

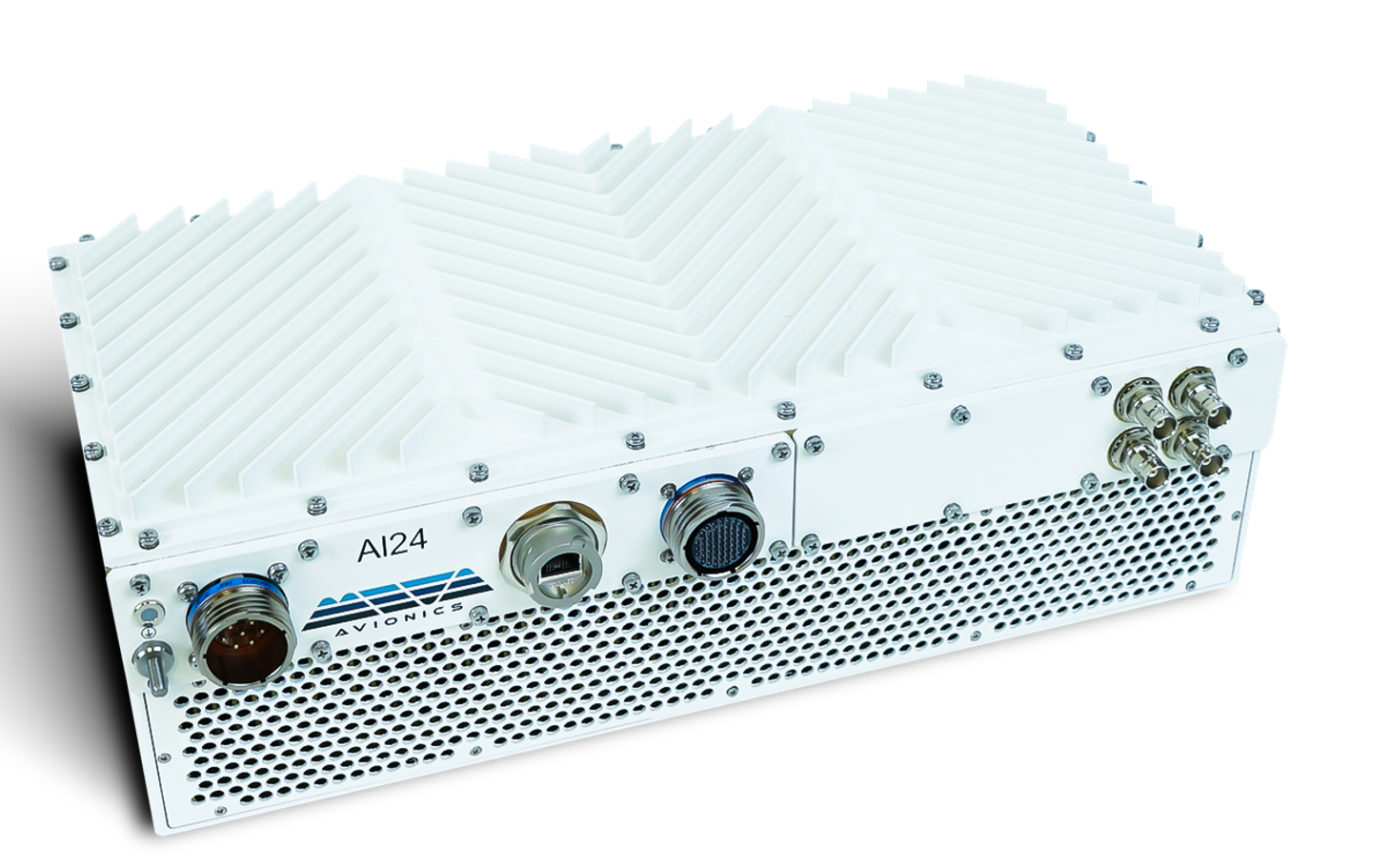

• Intel Xeon D-2700 Processor, 10C/20T 2.0 GHz 15MB Cache, Edge AI (Intel® AVX-512 & VNNI), AI Capabilities with Intel® DL boost • 4 x Embedded NVIDIA RTX™ A4500, NVIDIA Ampere Architecture, 16GB GDDR6 memory • Up to 8 TB Sata Disc • 2 x TSN capable 2.5GbE • 3 x M.2 Slot (Video Capture, Storage, Interface ….) • 10GBase-T Ethernet • 2 x CAN 2.0A/B, 1 x 422/485, 2 x USB 3.0, 1 x USB 2.0, 4 video input (BNC) • Microsoft® Windows 10 | Linux • Weight < 9Kg • Dimensions (W x D x H) 390 x 200 x 125 mm • Operating Temperature -40 °C to +55 °C • Storage Temperature -55 °C to +85 °C • +28 VDC nominal input • Fan Cooling • Max Power ~600W • MIL-STD-461, MIL-STD-810 and MIL-STD-704

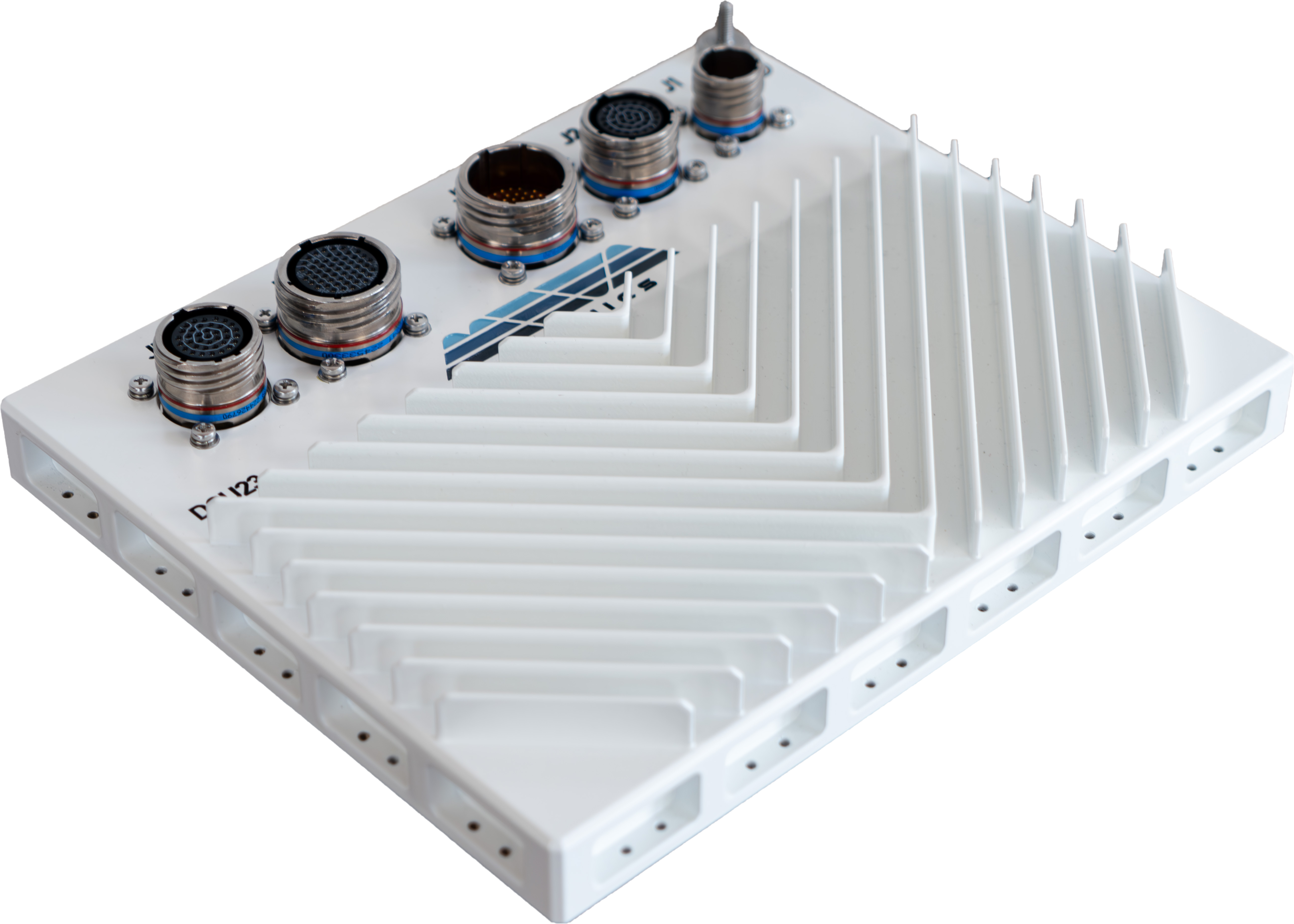

The DCU23 is custom designed Data Concentrator Unit for Military applications. It reduces the cabling necessity on weight critical platforms and applications. • TI AM6442 Sitara MicroProcessor • 2 x ARM Cortex A53 1.0 GHz, 4 x ARM Cortex R5F, 1 x ARM Cortex M4F Cores • 2 GB DDR4 SDRAM • 16 GB eMMC, EEPROM, 512Mb QSPI Flash • 4 x GbE, 2 x MIL-STD-1553, 3 x ARINC429, 14 x RS42, 4 x CANBus, 8 x OPEN/GND IN/OUT, 1 x USB 2.0, 1 Isolated RS232, 1PPS • U-Boot, FreeRTOS, Yocto OS BSP • Weight < 1550 gr • Dimensions (WxDxH) 238 x 35 x 198 mm • Operating Temperature -40 °C to +71 °C • Storage Temperature -55 °C to +100 °C • +28 VDC nominal input • Fanless operation • Max Power ~15W • MIL-STD-461, MIL-STD-810 and MIL-STD-704

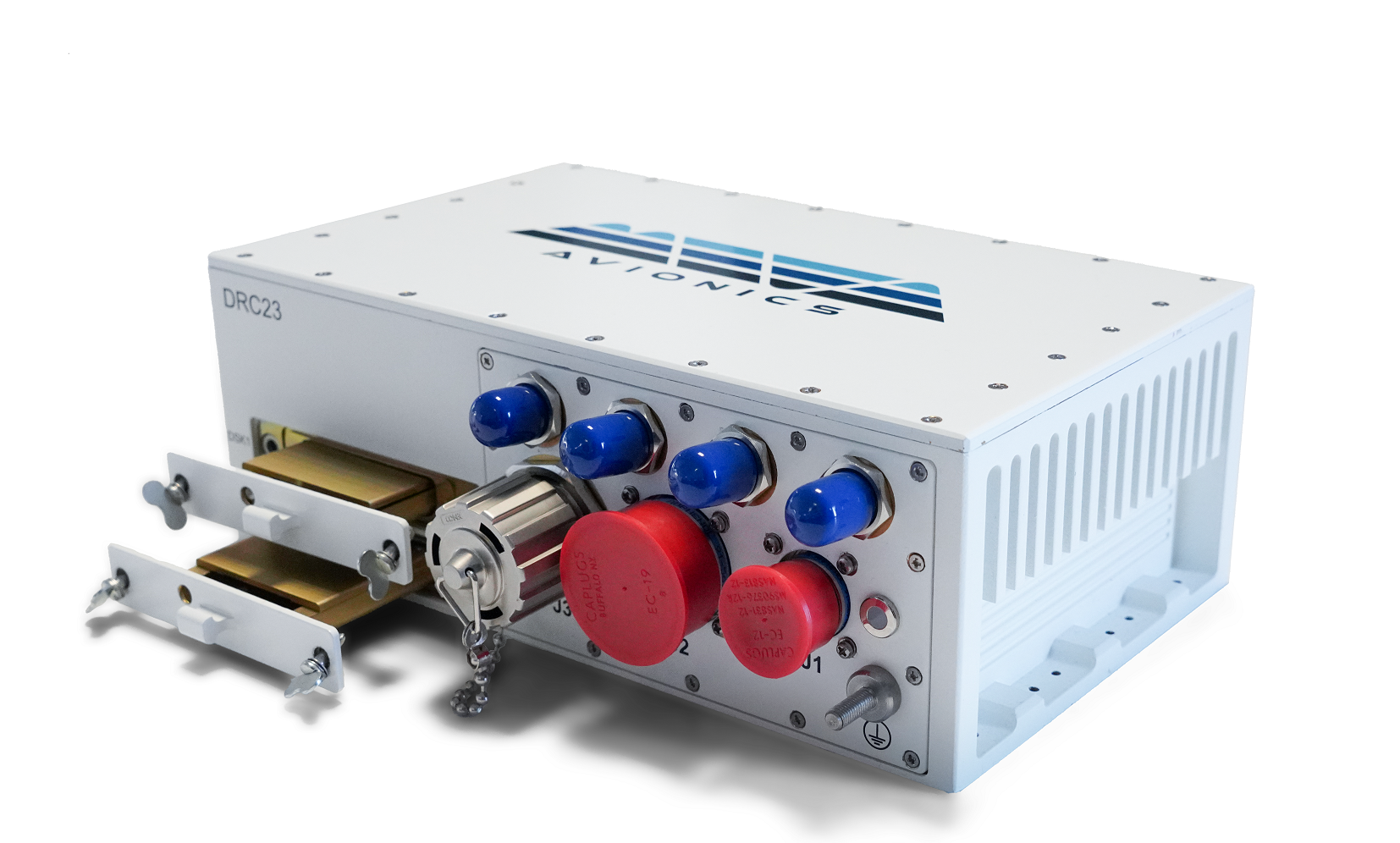

DRC23 complies with military standards, rugged design, and ensure reliable and uninterrupted data recording across a wide range of applications. Additionally, removable M.2 disks make data transfer easy. • Intel Atom X6414RE 1.5 GHz • 4 GB 3200 MT/s LPDDRx • 32 GB eMMC 5.1 Flash • 2 x Removable M.2 SSD Disk • 2 x Fixed M.2 SSD Disk, 2 x SATA Disk, • 1 x USB 2.0, 2 x USB 3.0, 2 x CAN, 1 x RS232/422/485, 1 x RS422, 4 video input (BNC) • 1 x GbE, 1 x 10GBase-T • Microsoft® Windows 10 | Linux • Weight < 2Kg • Dimensions (W x D x H) 230 x 135 x 85 mm • Operating Temperature -40 °C to +55 °C • Storage Temperature -55 °C to +85 °C • +28 VDC nominal input • Fanless operation • Max Power ~30W • MIL-STD-461, MIL-STD-810 and MIL-STD-704

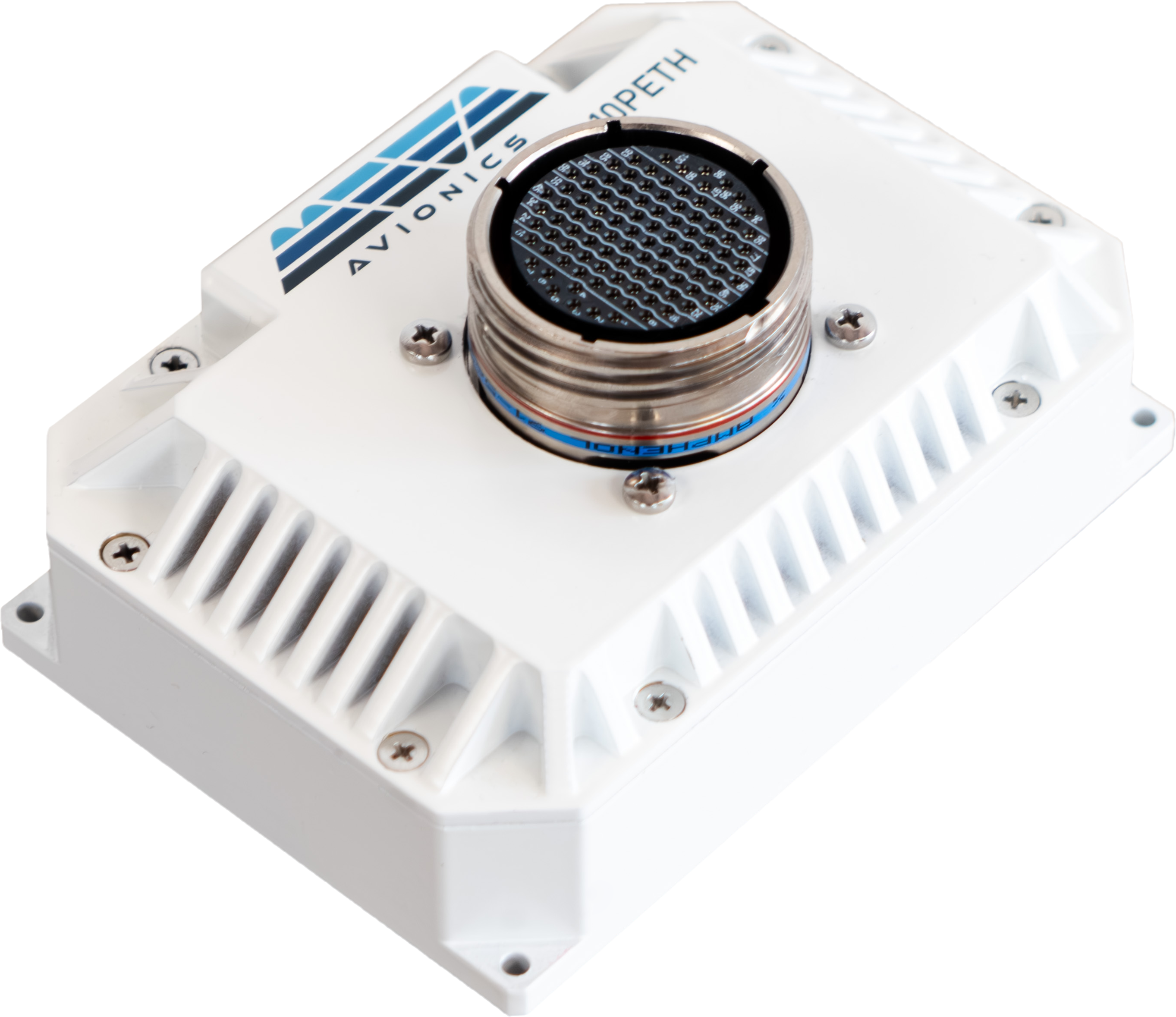

ETH10P Ethernet Switch provides high-speed unmanaged network switching solutions to meet the needs of various platforms. It is designed to withstand military environmental conditions. • Unmanaged Ethernet switch • 10 x 10/100/1000Mbps Ethernet Ports on 38999 • Fanless operation • Weight < 450 gr • Dimensions (W x D x H) 115 x 40 x 80 mm • Operating Temperature -40 °C to +71 °C • Storage Temperature -55 °C to +100 °C • +28 VDC nominal input • Max Power 7W • MIL-STD-461, MIL-STD-810 and MIL-STD-704

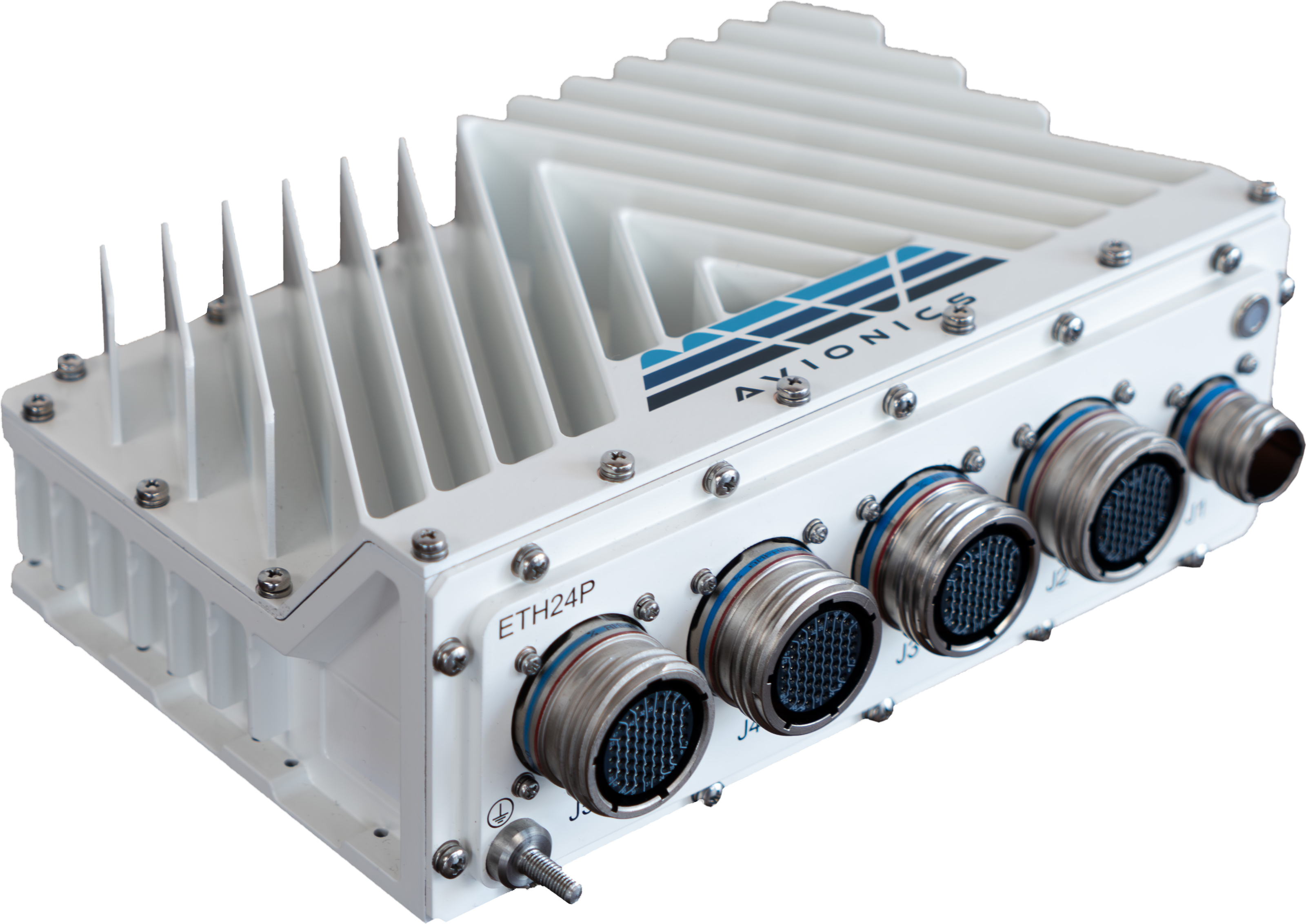

ETH24P Ethernet Switch offers high-speed ethernet L3 switching for various platforms. With Layer-3 capabilities, it effectively manages larger, complex networks. It is engineered to withstand military conditions. • Fully managed L2/L3 switch • 24 x 10/100/1000Mbps Ethernet Ports on 38999 • Fanless operation • Weight < 1800 gr • Dimensions (W x D x H) 210 x 140 x 75 mm • Operating Temperature -40 °C to +71 °C • Storage Temperature -55 °C to +100 °C • +28 VDC nominal input • Max Power 30W • MIL-STD-461, MIL-STD-810 and MIL-STD-704

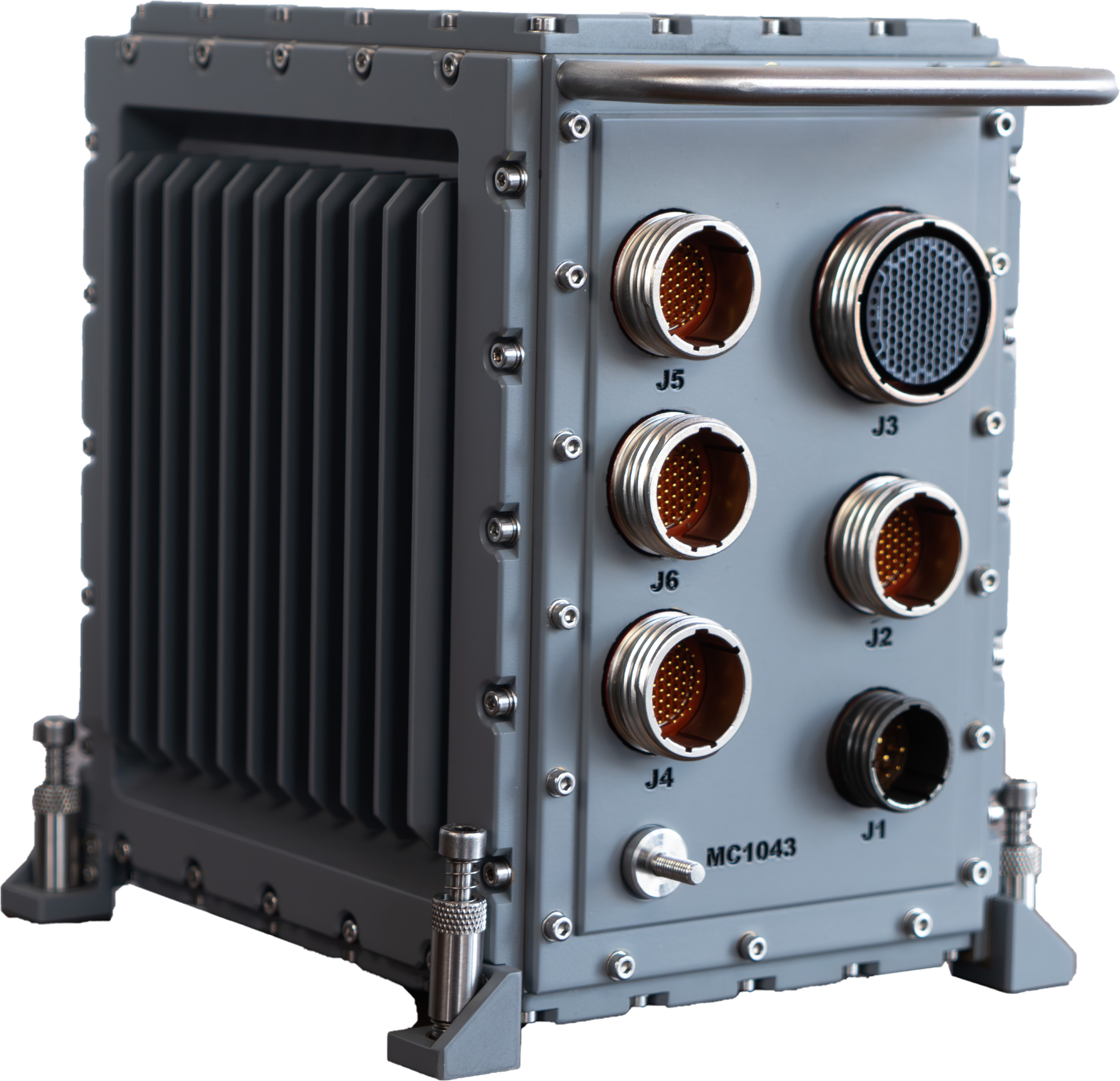

The MC1043 is a rugged embedded mission computer specifically for tough, modern embedded computing problems such as autonomous vehicle control, 360° situational awareness, or sensor processing. • 3U VPX Based processor Board, NXP Layerscape QorIQ 1.5 GHz • 3U VPX FPGA based IO Board • 4 GB 3200 MT/s LPDDRx • 32 GB eMMC 5.1 Flash • 6 x GbE, 6 x CAN, 16 x RS232/422/485, • 2 x USB 2.0, 4 x ARINC-429, 4x MIL-STD-1553, 16x Discrete Input, 8x Discrete Output • Linux OS • Weight < 5.6 Kg • Dimensions (W x D x H) 175 x 195 x 220 mm • Operating Temperature -40 °C to +71 °C • Storage Temperature -55 °C to +85 °C • +28 VDC nominal input • Fanless operation • Max Power ~40W • MIL-STD-461, MIL-STD-810 and MIL-STD-704
